Our range of products include pulley lagging sheet, diamond pulley lagging rubber sheet and diamond groove grip rubber sheet.
| Material | Rubber |
| Brand | Saurashtra |
| Tensile Strength | 6 MPa |
| Abrasion | 90 mm3 (max) @ 10N |
| Specific Gravity | 1.35 c/cm3 |
| Thickness | 10-12 mm |

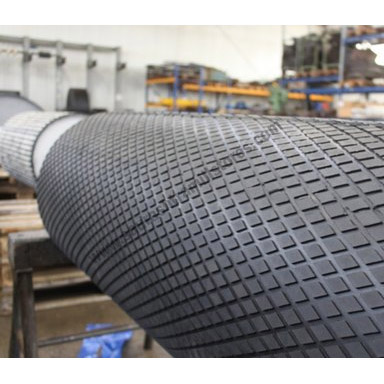

Abrasion resistant rubber friction cover sheet with shore hardness of 60+- 5% designed in a diamond shaped profile & plain type, which increase the friction value between drum & belt available in different thickness & sizes. Diamond Pulley Lagging Rubber Sheets are designed to improve the friction coefficient between the Drive Pulleys and the Conveyor Belts.
| Material | Rubber |
| Brand | Saurashtra |
| Thickness | Available 8 mm, 10 mm and 12 mm |
| Working Temperature | -20 deg C to +70 deg C |
| Hardness | 60 +/-5 Shore A |
| Abrasion | 120 mm3 |

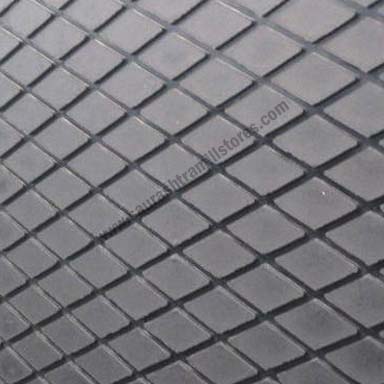

Pulley Lagging Sheet is the term used to describe the application of a coating, cover or wearing surface which is sometimes applied to pulley shells. Pulley lagging is often applied in order to extend the life of the shell by providing a replaceable wearing surface or to improve the friction between the belt and the pulley. Notably drive pulleys are often rubber lagged for exactly this reason. This section provides some useful information regarding the different types of lagging as well as some technical details and recommendations for lagging of pulleys.
| Color | Available Black & White |
| Thickness | From 1 mm to 20 mm |
| Packaging Type | Roll |
| Material | Rubber |
| Width | 1500 mm (max) |
| Hardness | 60+-5 Shore A |
| Tensile Strength | 3.5 Mpa |
| Elongation | 250% |
| Tear Strength | 1 Mpa |
| Density | 1.5 |
| Temperature | -30~100 deg C |
| Brand | Saurashtra |

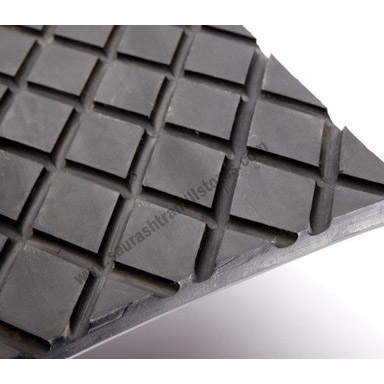

We manufacture and supply huge range of Diamond Groove Grip Rubber Sheets according to the customers’ requirements and in addition to that we also provide service of pulley lagging. These Rubber Sheets are available in various type and design.
